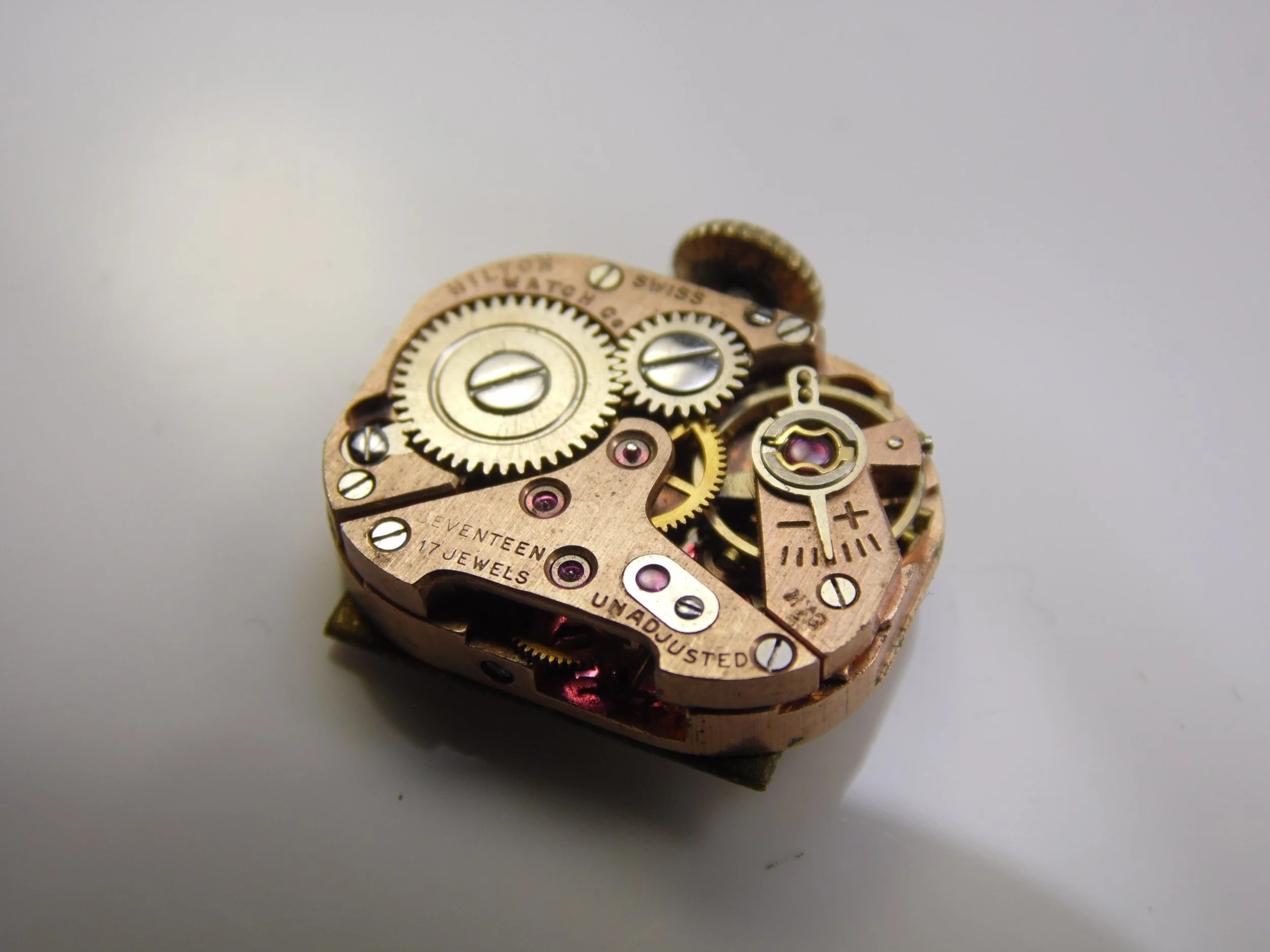

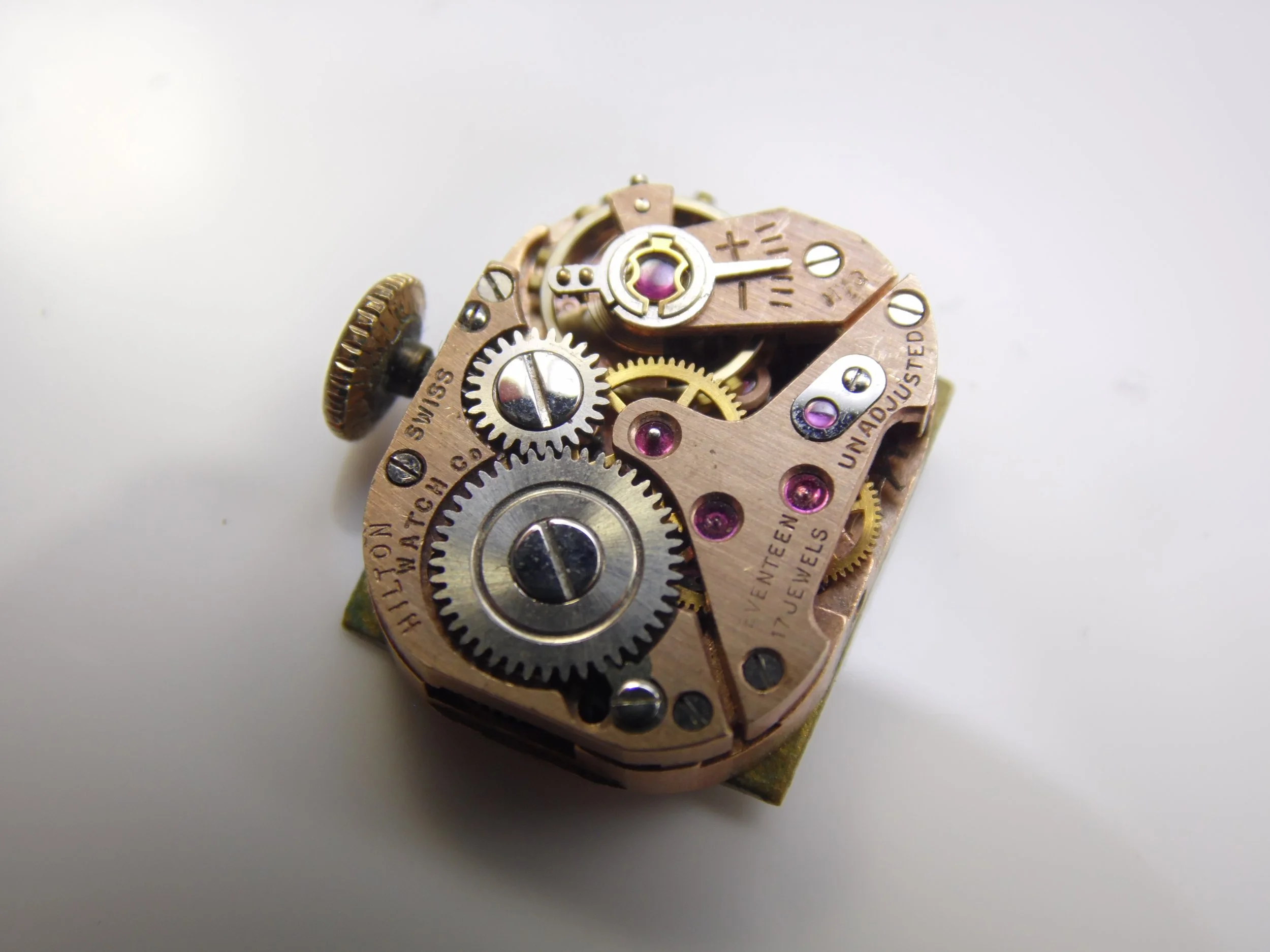

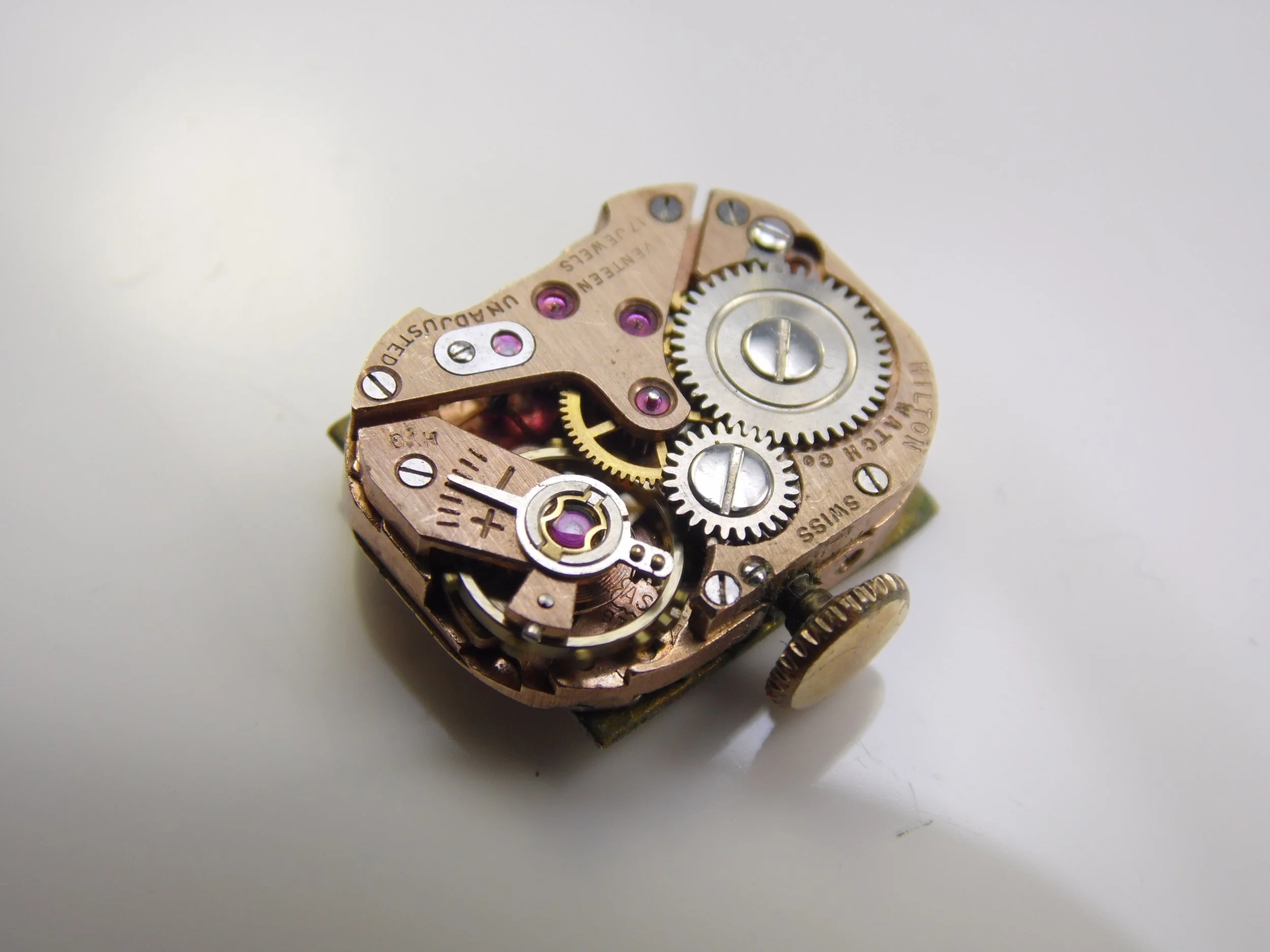

Vintage Geneva/Hilton Watch Co. (AS 976) 17 Jewels Mechanical Manual Watch Movement Parts/Repair Only (In Running Condition)

• Runs, but may need "push" will need to be serviced/cleaned

• Can't guarantee accuracy or consistency

• Might have trouble running consistently, but has been running on its own if left alone

• Crown winds smoothly

• Hands setting is smooth

• Selling As Is, Parts/Repair Only

• No Returns or Refunds

AS 976
differences not known between 976, 986, 990, 1022, 1057, 1079, 1246, 1273, 1406, 1467, 1482, 1489
probably catalog designation for different bridge layouts

Features
manual wind

Data
5.5 x 7''', Dm= 12.2 x 15.5mm
Do= 12.2 x 15.85mm
H= 3.5mm
F= 0.5mm
T= 1.7mm
15/17 jewels
f = 18000 A/h
power reserve 40h

Balance staff according hairspring collet
screw balance:
U2437: 0.4mm
U1422: 0.45mm
U1181: 0.5mm
ring balance:
U3091: 0.45mm

Stem W967

Mainspring / battery
Zf994, 1.40 x 6.0 x 0.06 x 210mm

Hands
1.00 x 0.55mm
